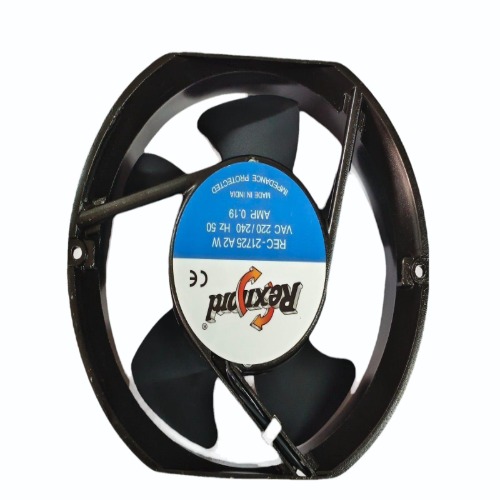

6 inch panel cooling fan

Name: 6 inch panel cooling fan
Brand: Shree Shiva Electrical
Price: 280.0 INR
Availability: InStock

Price 280.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

6 inch panel cooling fan Specification

Size
6 Inch

Blade Material
Plastic

Type
Panel Cooling Fan

Installation Type
Panel Mount

Power
35 W

Power Source
Electric

Voltage
220-240 V

Energy Efficiency Rating
A+

Speed Mode
Single Speed

Blade Diameter
6 Inch

No. Of Blades
5

Color
Black

Material
ABS Plastic

Remote Operated
No

Motor Type
Copper Wound

Cord Length
1 Meter

Application
Industrial / Panel Cooling

Noise Level
<45 dB

Ingress Protection
IP44

Bearing Type
Ball Bearing

Frequency
50/60 Hz

Air Flow
180 CFM

Operating Temperature
-10C to 60C

Mounting Dimensions
150 mm x 150 mm

Net Weight
730 g

About 6 inch panel cooling fan

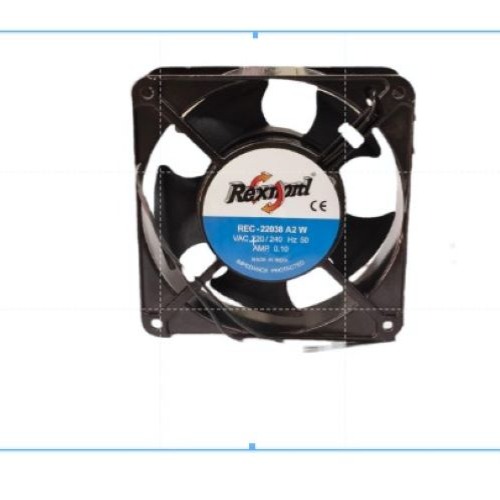

Specifications Breakdown (from available sources) REC-22038 A2 T (Typical Variant)

Voltage: 220230 V AC
Power: Approx. 17 W
Dimensions: 120 120 38 mm (4.7 4.7 1.5)
Airflow: 85 CFM
Speed (RPM): 2,6502,900 RPM
Noise Level: 43 dB(A)
Construction: Plastic blades + die-cast aluminum housing; Insulation Class B, dielectric strength 1,500 V
Bearings: Sleeve or ball bearing; operating temp: 10 C to +70 C (sleeve), 20 C to +70 C (ball)
Weight: Approx. 510530 g
Approvals: UL, CSA, CE, EN/IEC standards

REC-22038 A2 (Non-T Variant)

Stated to support 220 V AC as well; used in similar applications
Listing also mentions compatibility with both 50/60 Hz frequencies, with current draw around 0.1 A

Alternate Spec (Possibly Different Variant)

Some listings (e.g., REC-22038 A2T) indicate 230 V, 0.11 A, speed 2,650 RPM, airflow 100 CFM, power 18 W

Efficient Industrial Cooling

Optimize your panel and industrial cooling with this high-performance 6-inch panel fan. The copper-wound motor and 5-blade design provide robust airflow while maintaining minimal noise. Built to withstand challenging environments, it's ideal for machinery, electrical panels, and industrial enclosures requiring effective and reliable thermal management.

Designed for Durability and Easy Installation

Constructed from durable ABS plastic and featuring ball-bearing support, this fan guarantees longevity even under heavy use. The standard panel mounting dimensions (150 mm x 150 mm) and included 1-meter cord ensure straightforward and flexible installation-making it suitable for both new and retrofit systems.

FAQ's of 6 inch panel cooling fan:

Q: How is the 6-inch panel cooling fan installed?

A: The fan is designed for panel mounting, requiring a 150 mm x 150 mm cutout. With its compact build and 1-meter cord, installation is straightforward and can be performed in most industrial panels using standard screws and tools.

Q: What types of environments is this cooling fan suitable for?

A: Thanks to its IP44 ingress protection and operational temperature range of -10C to 60C, the fan is well-suited for industrial, electrical, and control panels in both indoor and moderately exposed environments.

Q: When should I use this fan over other cooling options?

A: This panel cooling fan is recommended when efficient airflow, low noise (below 45 dB), and compact size are key requirements. Its 180 CFM output makes it ideal for cooling confined and heat-sensitive spaces in industrial settings.

Q: Where does the fan typically get installed in a panel?

A: The fan is mounted directly onto the panel wall, usually at locations needing enhanced ventilation or thermal management. Its 6-inch blade diameter and single-speed operation ensure steady, targeted airflow where it's most needed.

Q: What are the benefits of a copper-wound motor and ball bearing design?

A: A copper-wound motor enhances energy efficiency and durability, while the ball bearing system reduces friction, resulting in longer life, smoother operation, and less maintenance over time.

Q: How does the energy efficiency rating of A+ impact usage?

A: The A+ energy efficiency rating ensures that the fan operates with low power consumption (35W) while delivering high airflow, making it economical for long-term, continuous operation in industrial environments.
